Click printed sound-absorbing panels

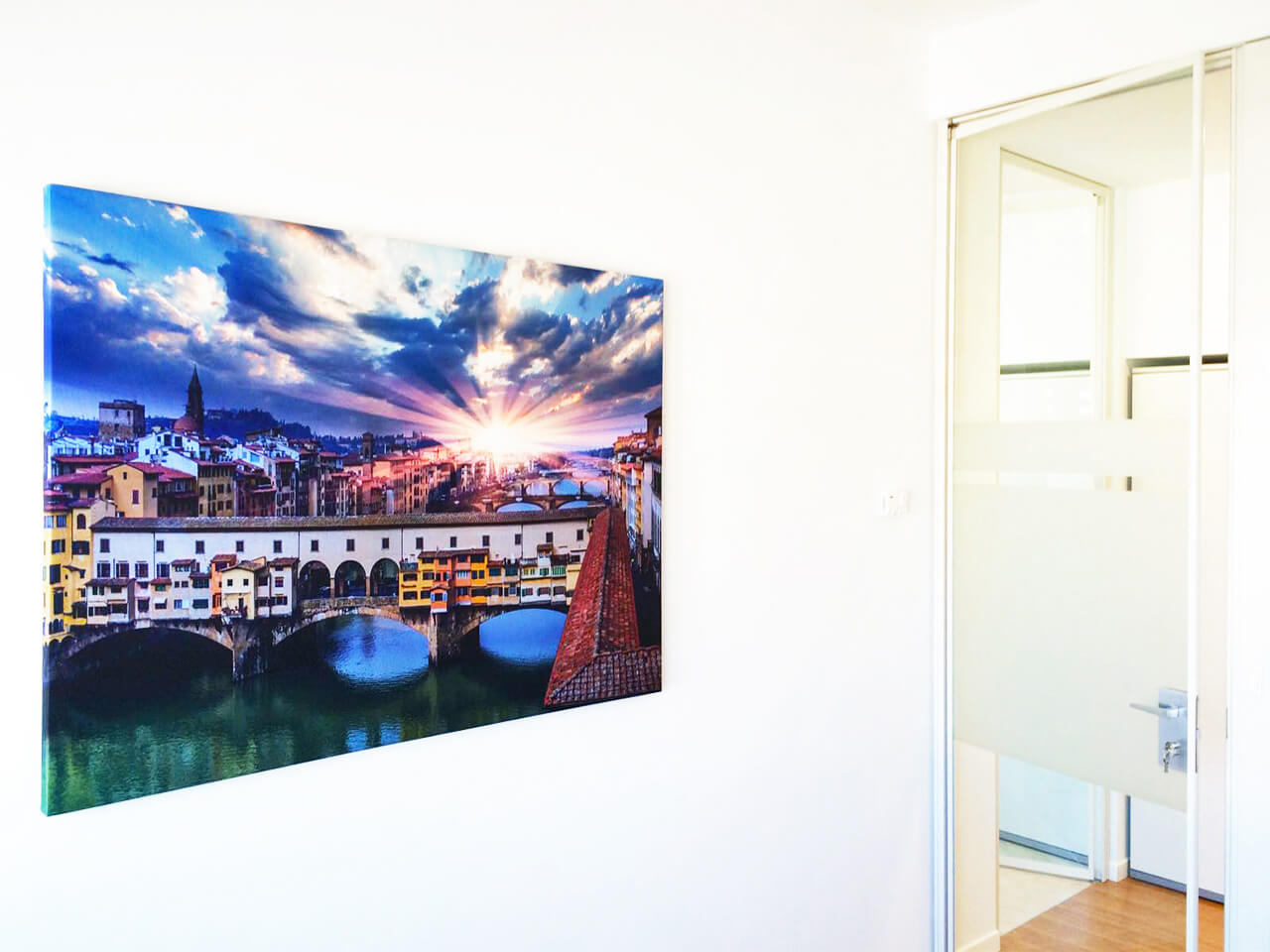

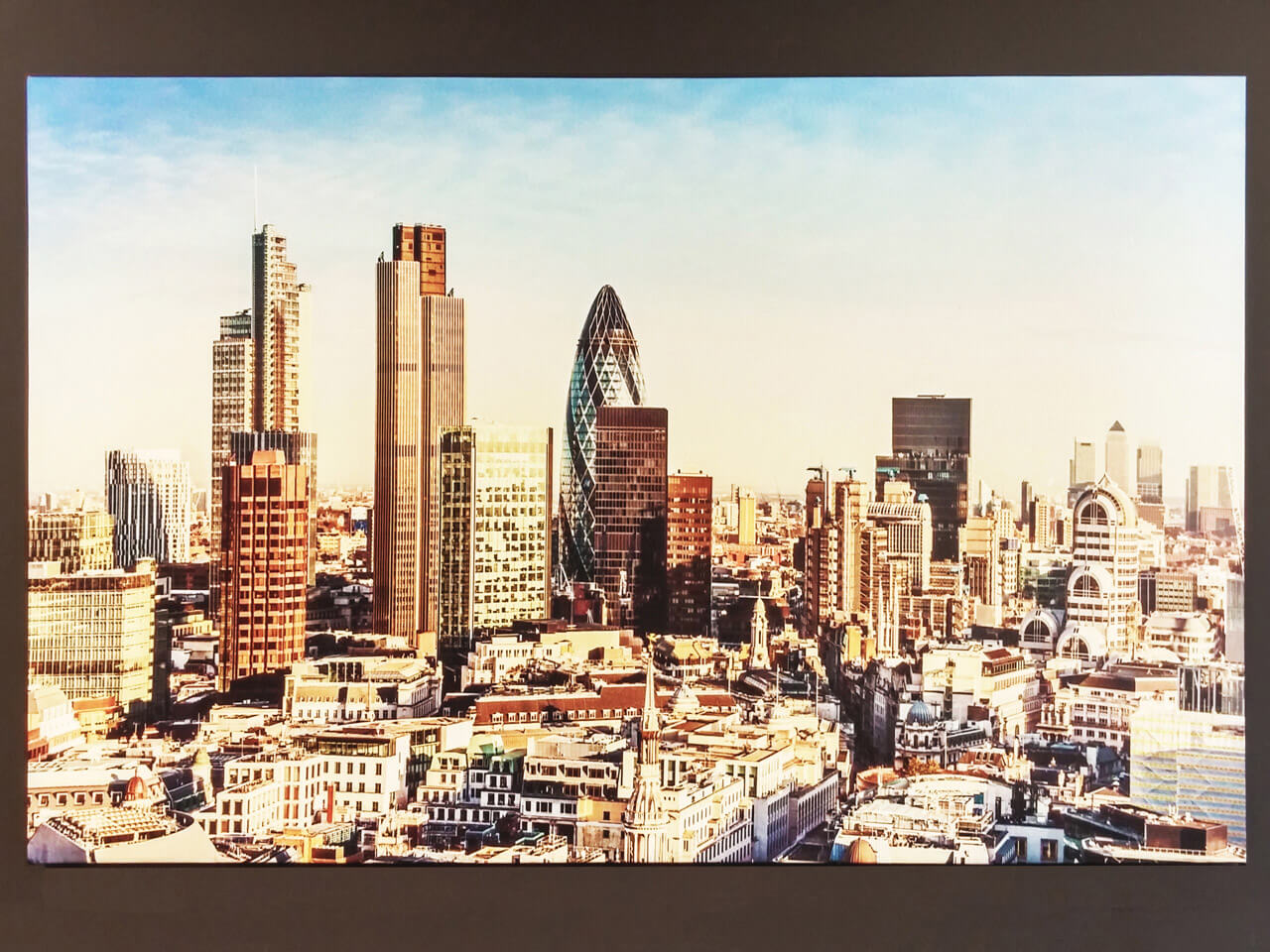

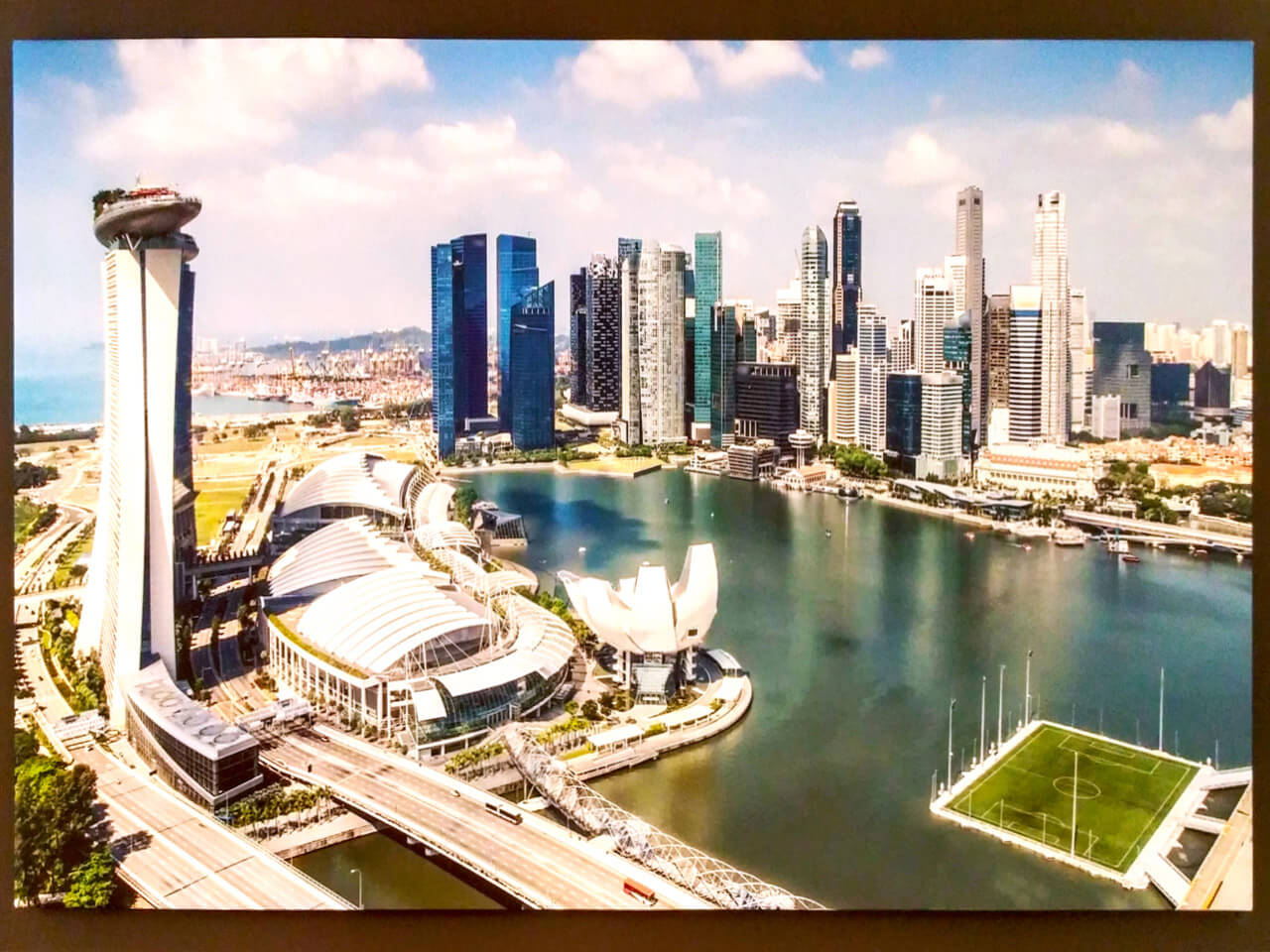

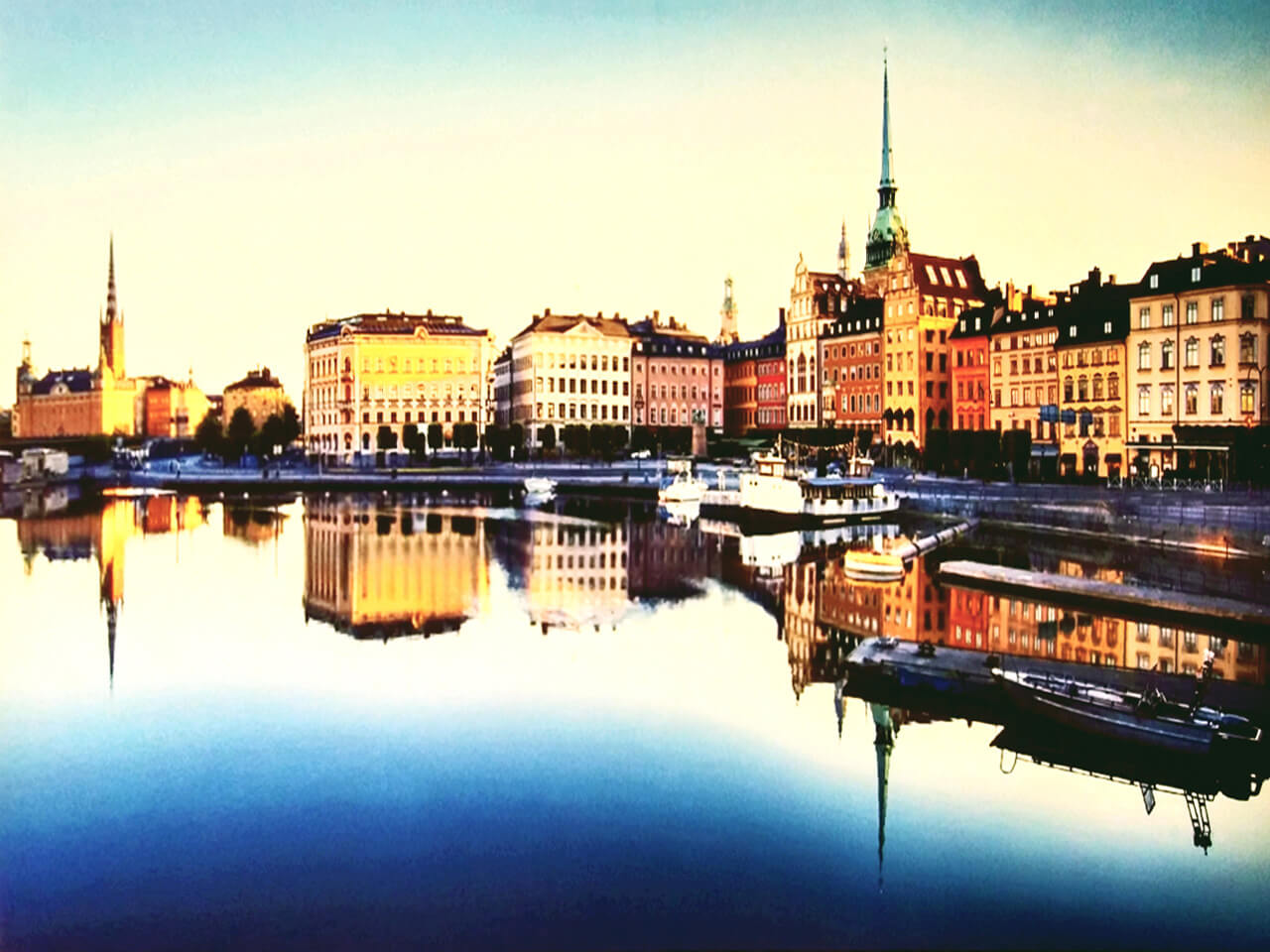

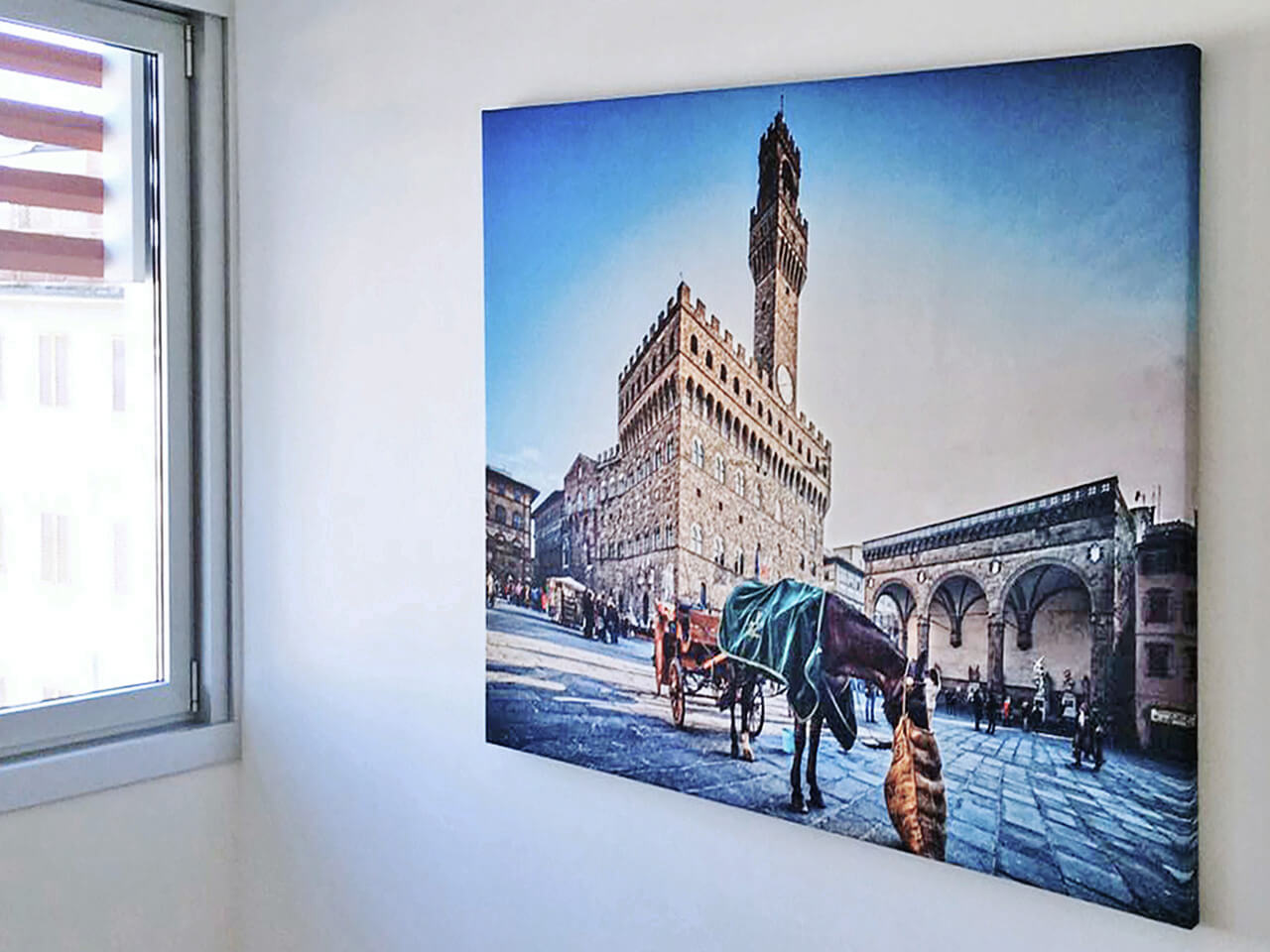

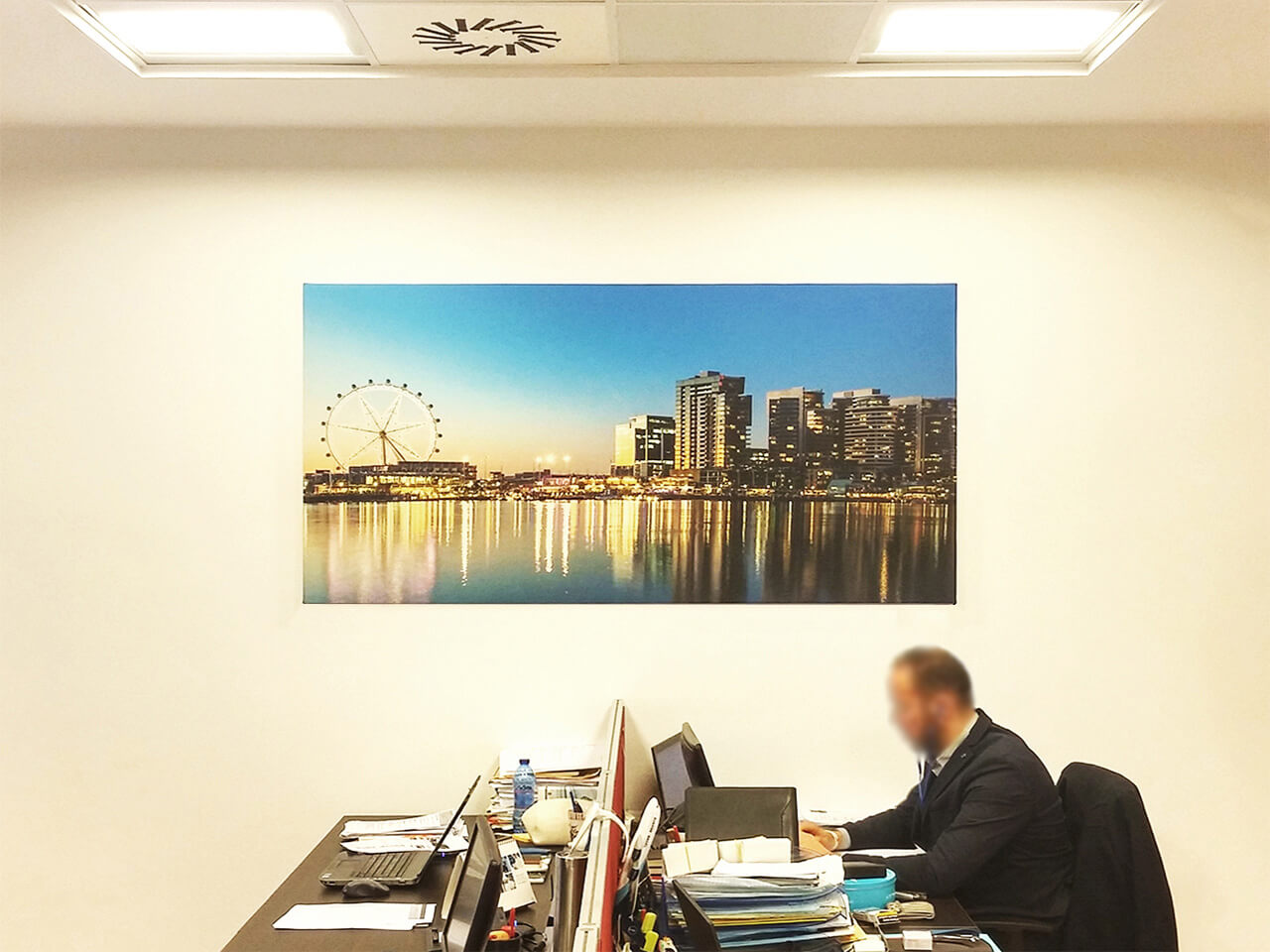

Click sound absorbing panels by Acoustic Lab are customizable panels with the printing of photos or images in high definition (HD).

The high definition images are printed on Trevira CS® fireproof fabric or ecological polyester, which is then fitted onto the acoustic panels with internal metal or forex frame. To fully exploit the potential of digital or sublimation printing, are required high resolution photos (minimum HD 300 dpi).

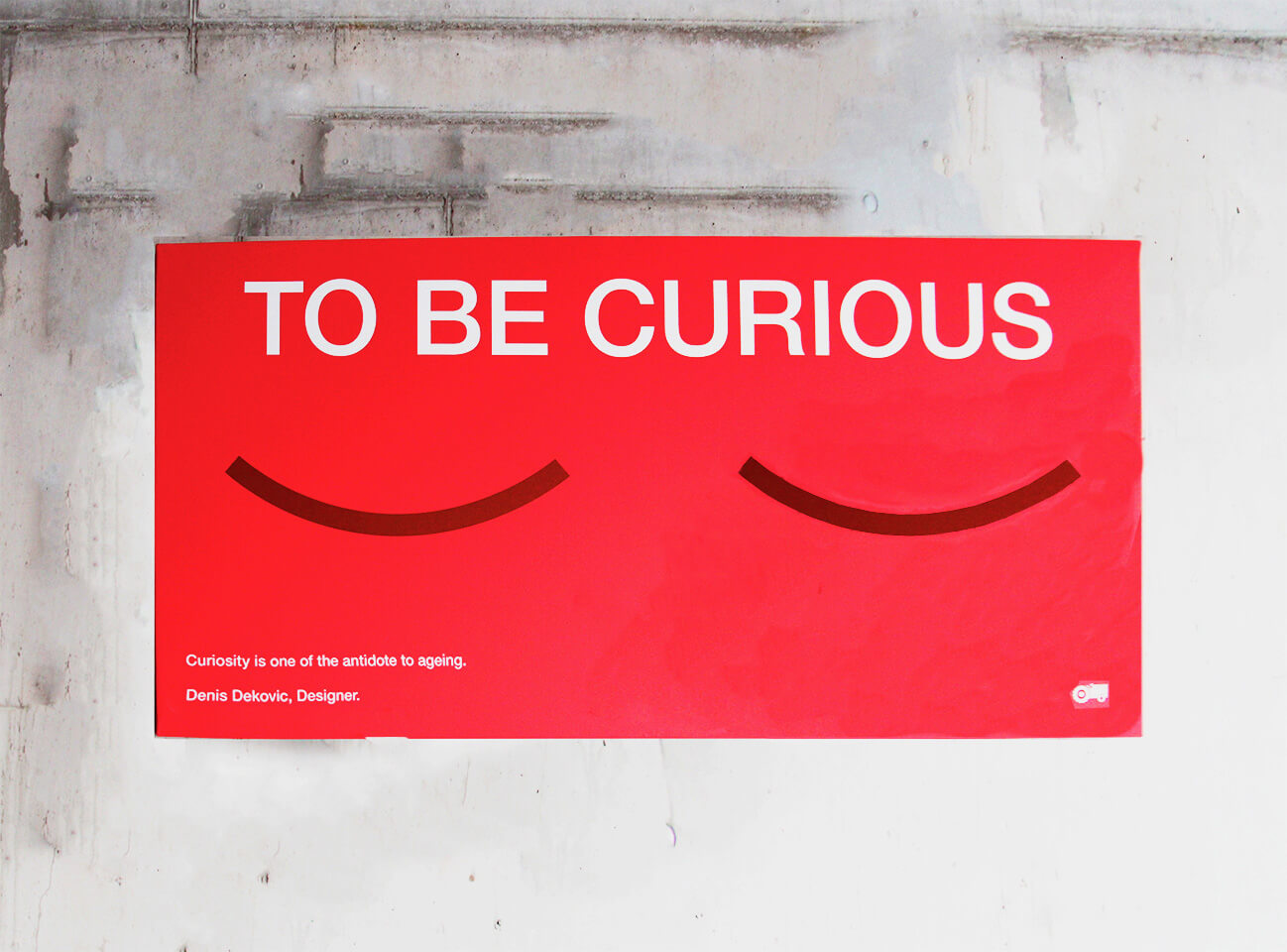

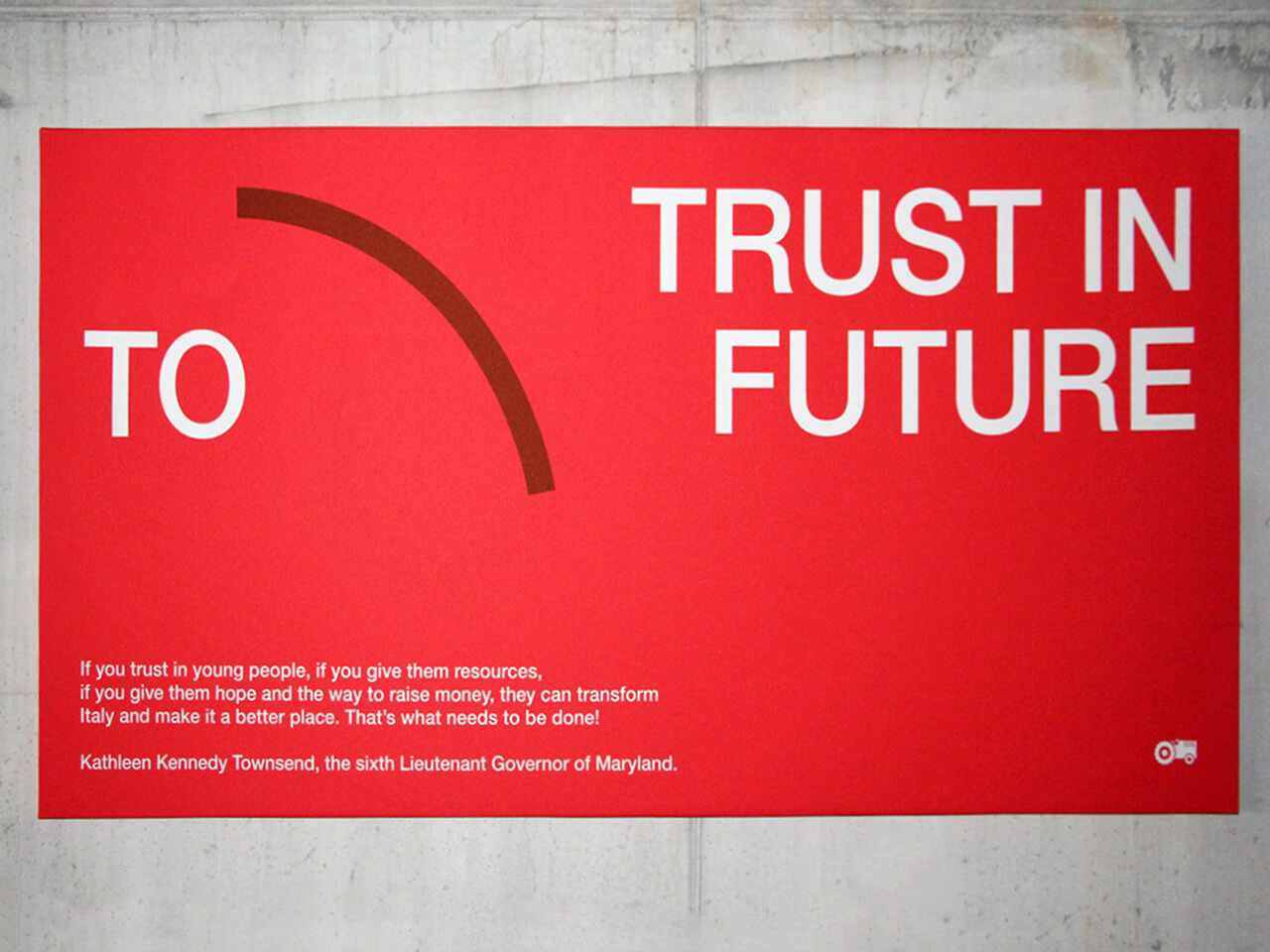

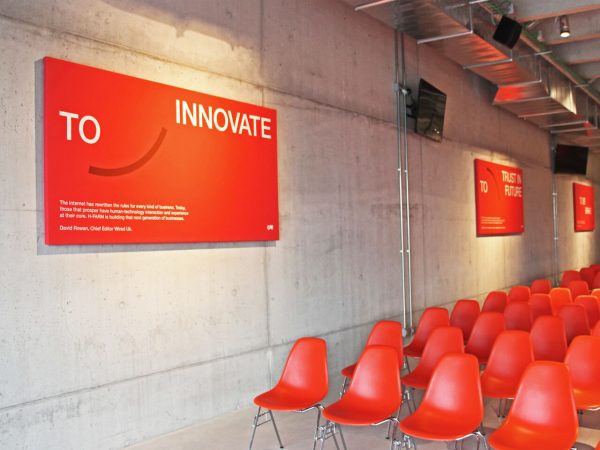

The Click printed sound-absorbing panels ensure maximum efficiency in terms of acoustic correction, being in class “A” of sound absorption, according to the reference standards (ISO 354: 2003 and ISO 11654: 1998) and are also a suitable tool to enhance the internal corporate communication or as a support for transmitting and disseminating one’s values in the various company spaces, remembering safety regulations in industrial environments or as a decorative element for office furnishings.

Click acoustic panels can also be equipped with round or square LED lamps, for more information and photos click here.

Description

Internal structure in aluminum, steel or forex (PVC).
Click printed sound-absorbing panels work acoustically according to the principle of sound absorption by porosity associated with the “spring-mass-spring” or “vibrating plate” system.
Internal material in polyester fiber of 50 kg / m3 with variable density (fireproof class Bs2-d0), developped to increase absorption at medium-low frequencies.
Standard thickness of the acoustic panel of 40 – 42 mm.

Finishes

The proposed coverings is available in Trevira® CS fireproof fabric or in 100% recycled ecological polyester fabric:
Trevira CS® 100% polyester fabric (class 1 – B-s1, d0)
Ecopolyester fabric, recycled polyester (fireproof class 1 IM)

Standard sizes

60 x 60 / 120 / 150 / 180 / 200 cm.
90 x 90 / 120 / 150 / 180 cm. 100 x 100 / 200 cm.
120 x 120 / 180 / 200 / 240 cm.
Circular (aluminium frame): Ø80 – Ø100 – Ø120 cm.
Maximum size: 120 x 300 cm.

Special sizes

It is possible to make acoustic panels of special sizes and formats, consult us for more information through the contact form.

Technical Characteristics

External coating
Trevira CS® fabric 100% polyester – Ecopolyester fabric, 100% recycled polyester

Abrasion resistance:> 50,000 Martindale cycles (± 20%)

Light resistance: EN ISO 105-B02-5

Friction resistance: EN ISO 105-X12 – Wet 4/5 – Section 5

Flammability: 1 IM UNI 9175 – EN 1021-1: 2006 – EN 1021-2: 2006 – TB 117: 2013 – IMO

Treatments: hydro-oil repellent

Internal polyester fiber certifications
