MicroAcoustic microperforated wood panels
For many professionals in the sector, such as interior designers and architects, an acoustic correction intervention often represents an alarm bell at the design level.
This is because the ultimate goal is always to be able to combine technical needs with aesthetic ones, trying not to modify their structural and material harmony, to preserve their beauty, and sometimes this is difficult.
MicroAcoustic micro-perforated wood acoustic panels are the ideal answer to this “architectural” emergency, thanks to their refined and elegant appearance and their fine wood finishes that are accompanied by high technological performance. In fact, the tiny holes imperceptible to sight that characterize their surface and which give them the sound-absorbing capacity, transform them into real architectural design coatings whose performance role has an “invisible impact” on the decorative aspect.
MicroAcoustic micro-perforated wood panels introduce the concept of invisible acoustics in public spaces and in all those places where sound absorption is essential. When we talk about invisible acoustics we refer to a technical intervention aimed at solving acoustic problems in a public place, the result of which is absolutely absolutely detectable on a visual level, but offers a high degree of sound absorption and extraordinary decorative properties, giving the rooms the warmth typical of natural essences.

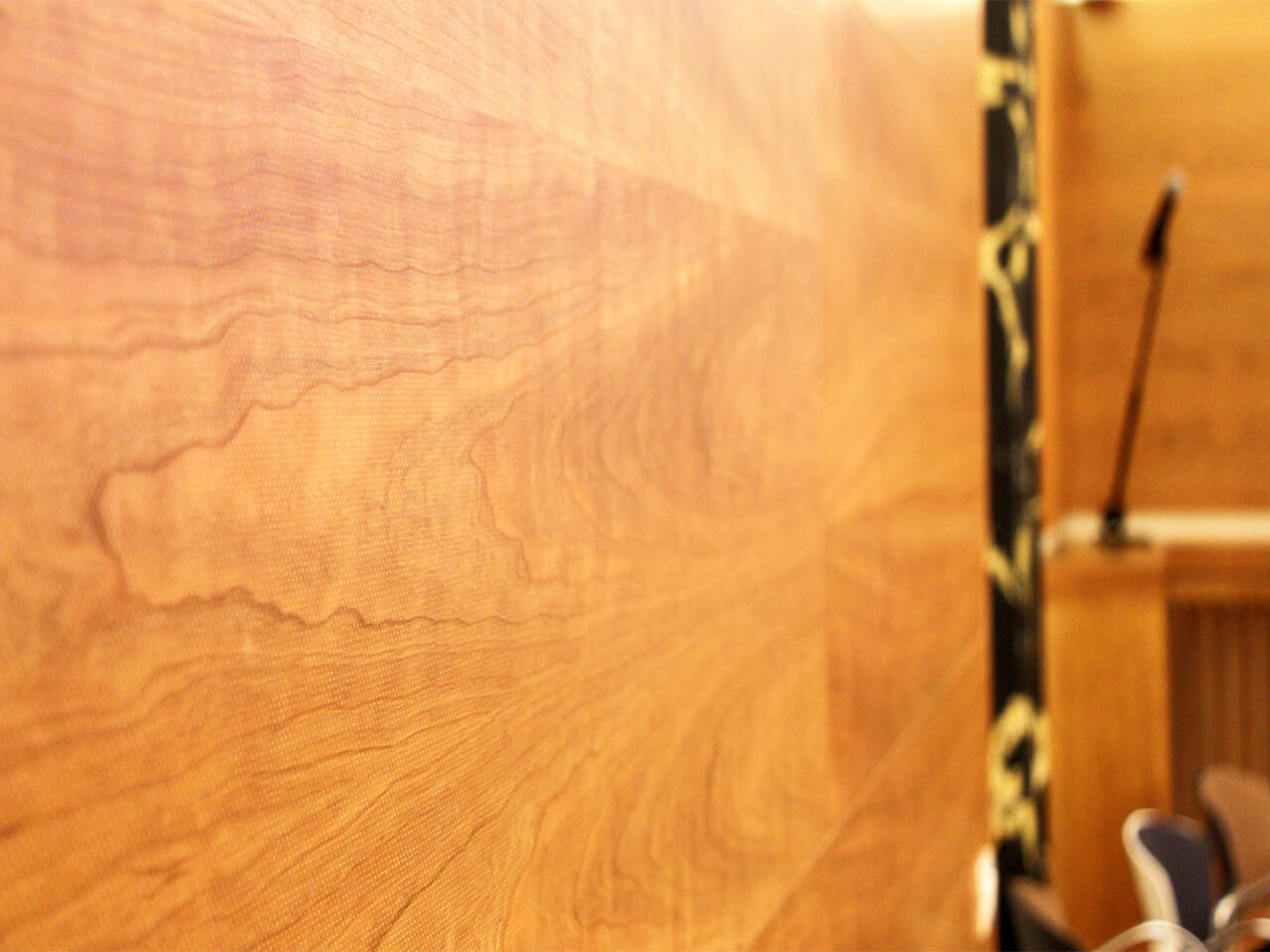

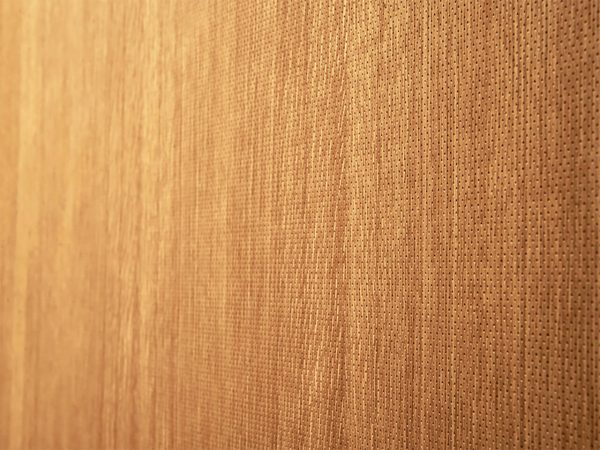

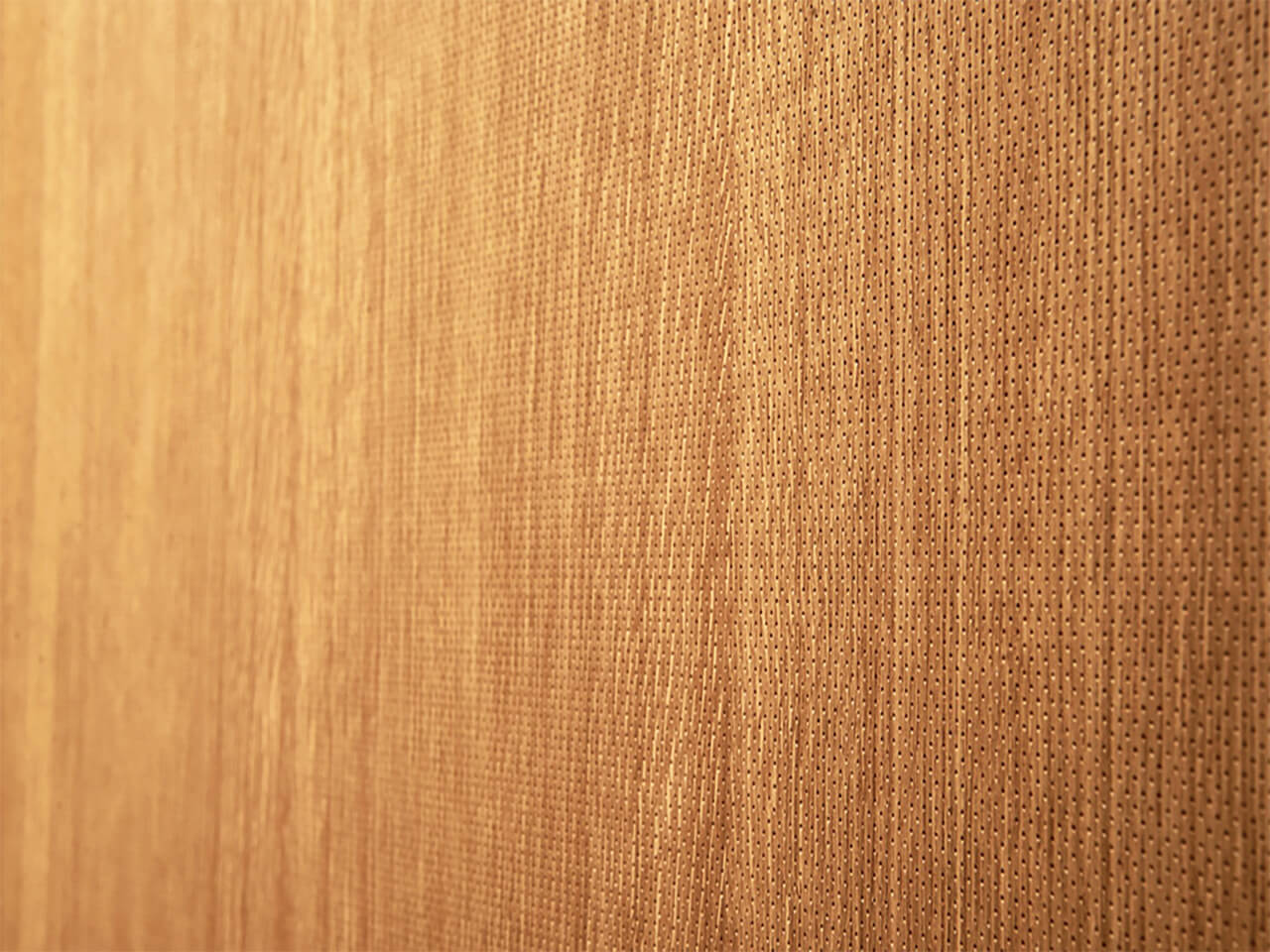

The surfaces of the MicroAcoustic micro-perforated wood panels appear light and harmonious to the eye, thanks to the tiny perforations that cover them. The exceptional sound-absorbing properties that distinguish them, in fact, are due to the presence of these tiny holes which, by trapping sound waves, reduce the reverberation within the environment.

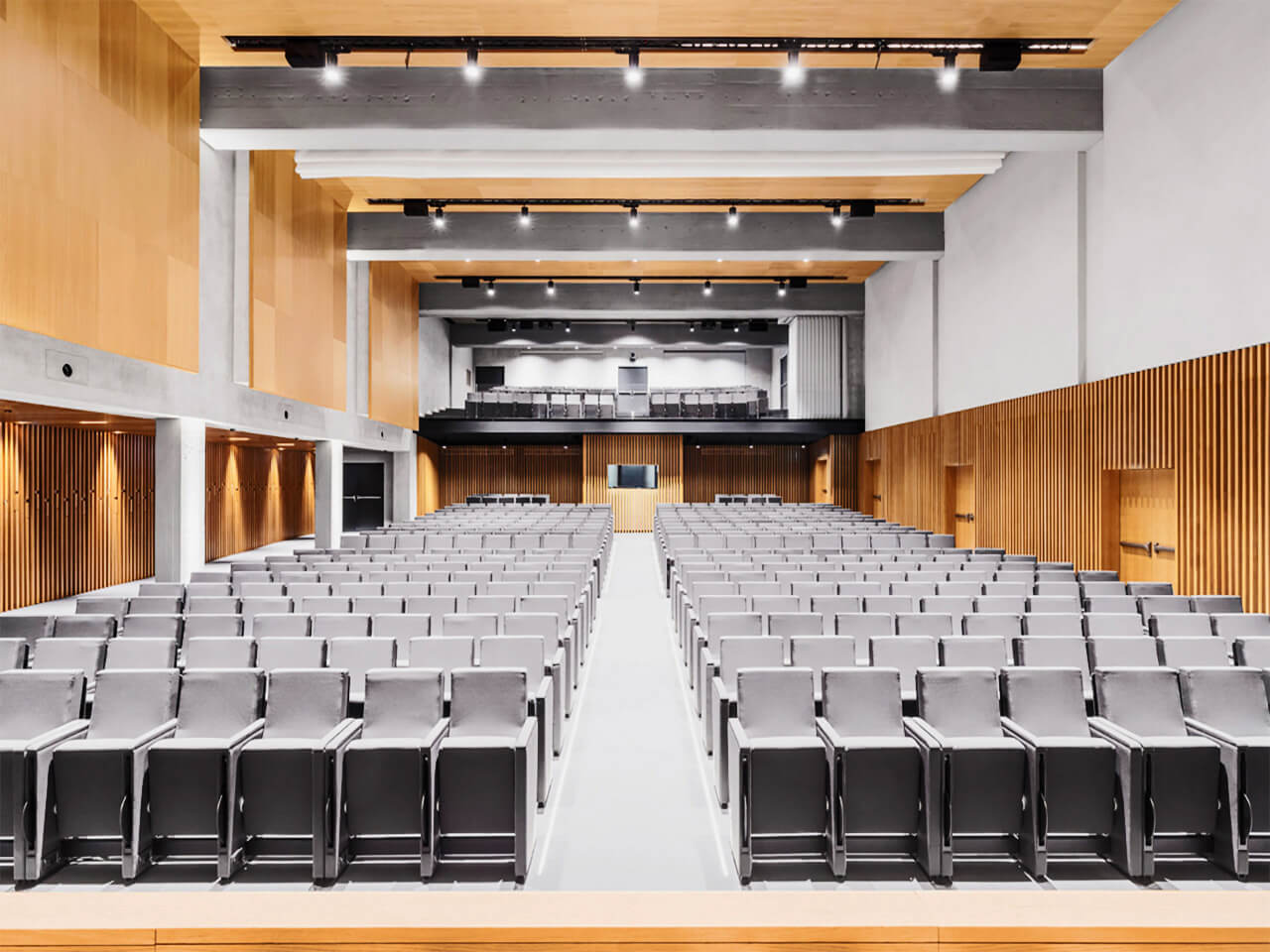

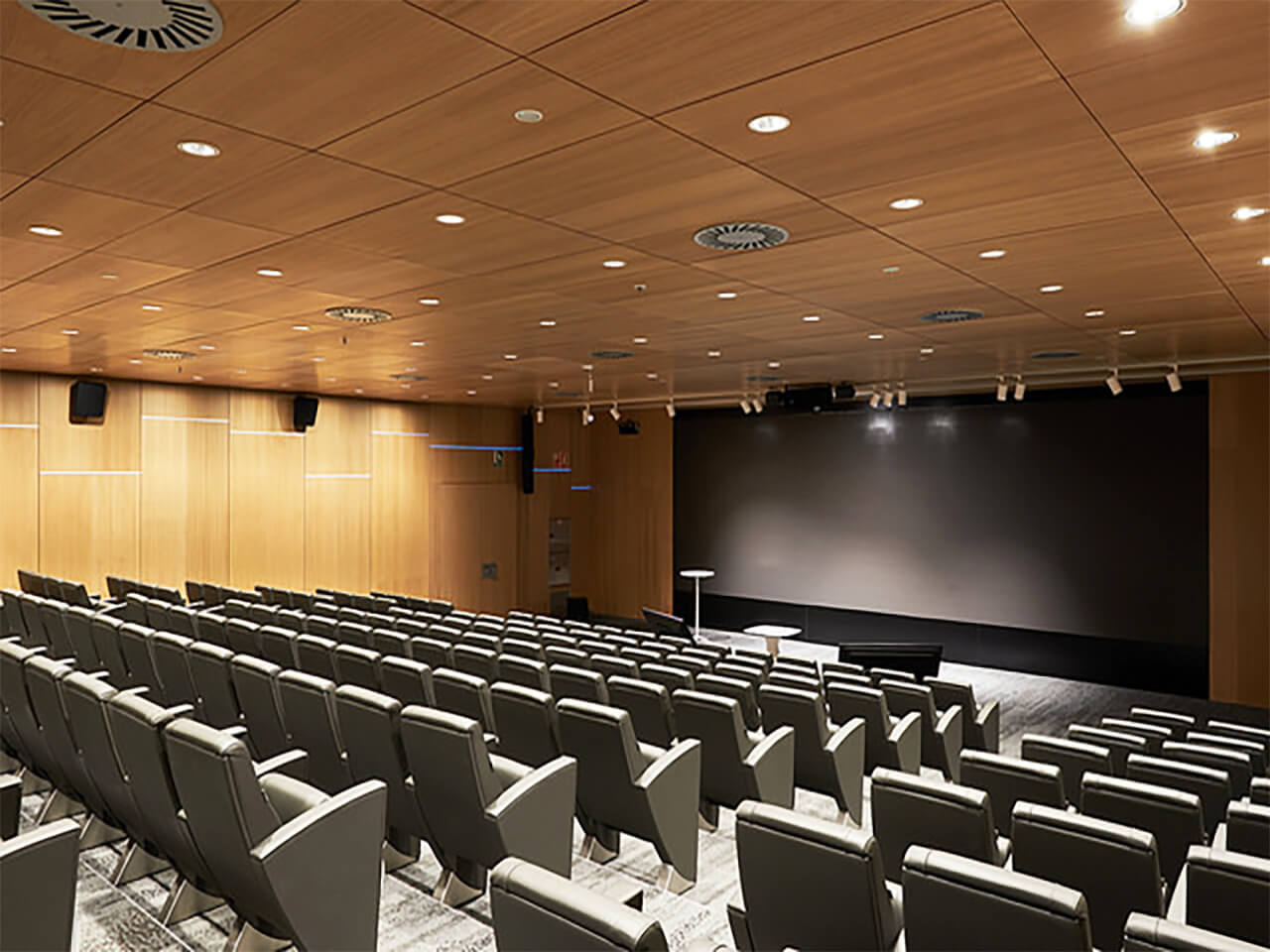

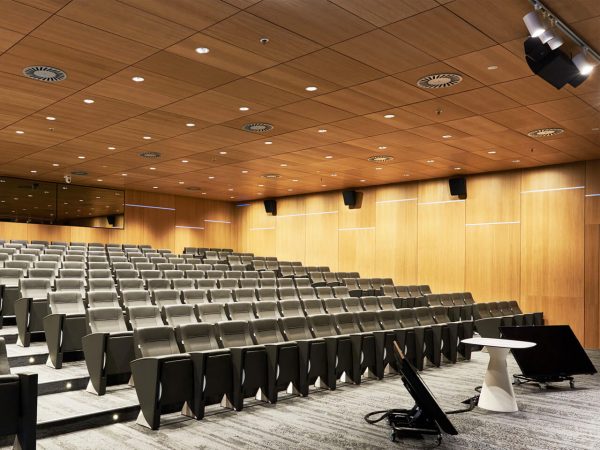

The MicroAcoustic sound-absorbing covering is ideal for entertainment spaces, where the main objective is to control and reduce the impact of the various sound sources that coexist, such as in theaters and auditoriums.

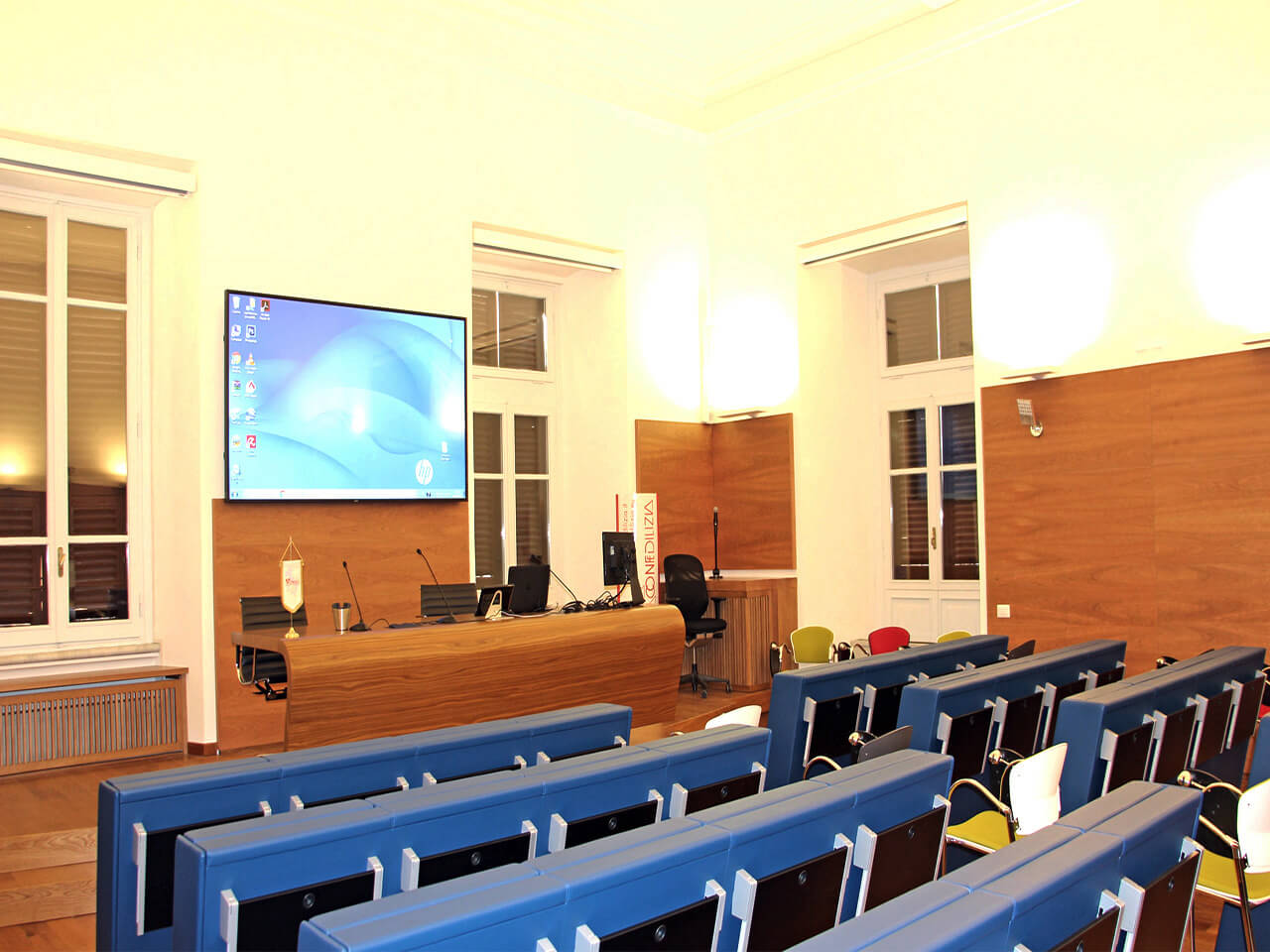

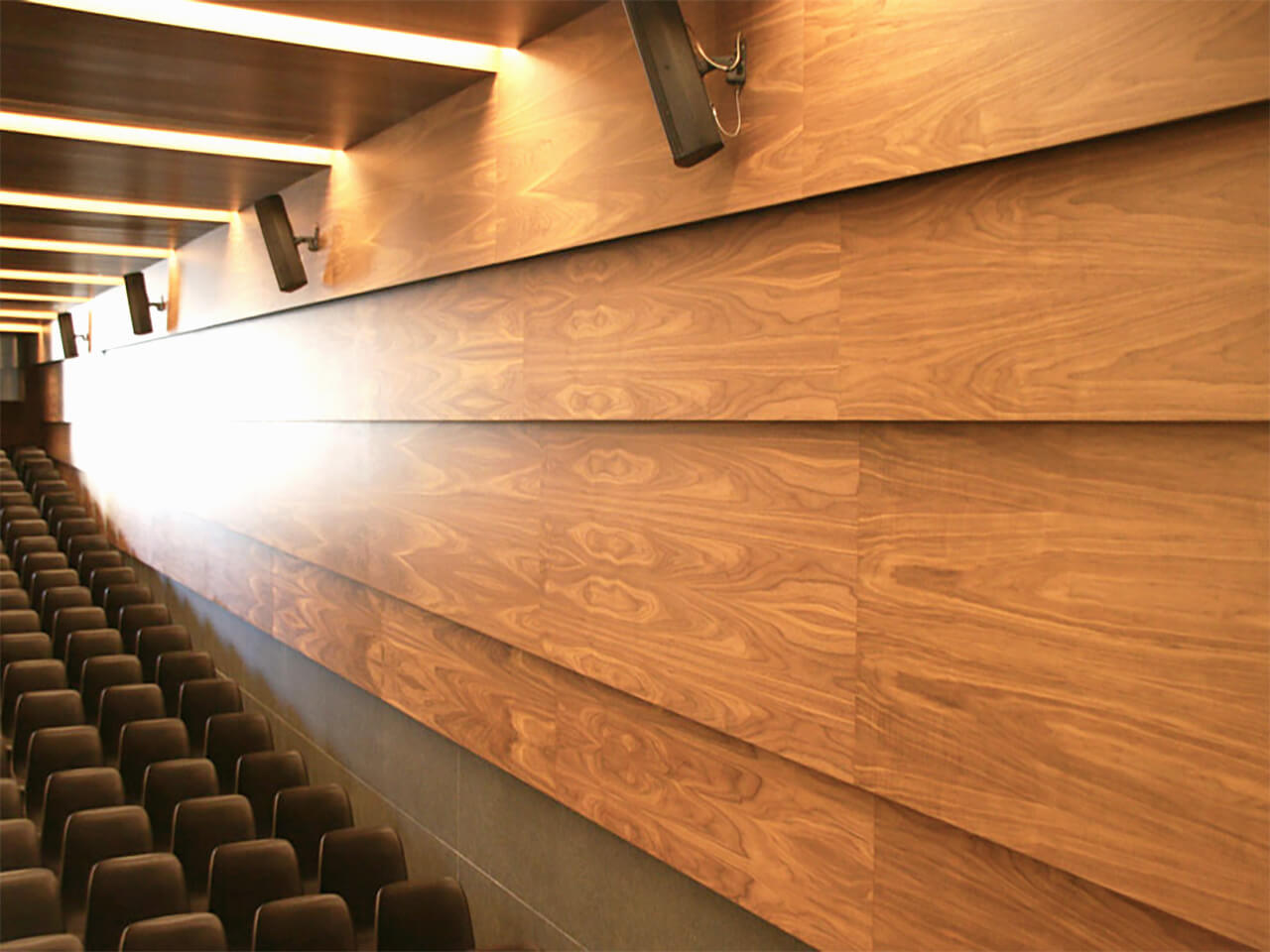

It is also suitable for conference rooms, work spaces, restaurants, university classrooms and for all those places for collective use where it is necessary to control the sound system and meet high-profile aesthetic needs.

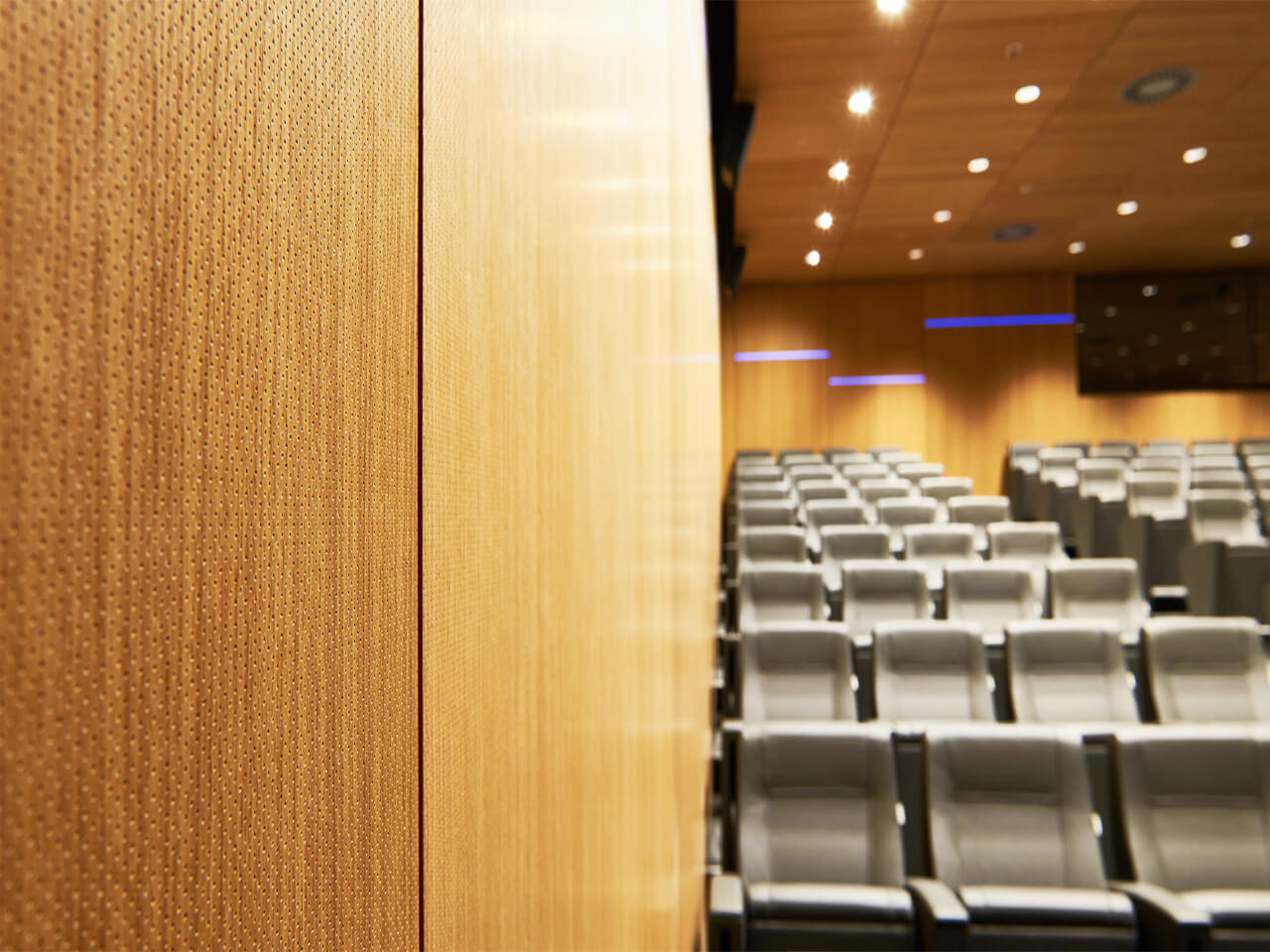

MicroAcoustic micro-perforated wood panels are ideal for creating acoustic walls, wall coverings or sound-absorbing false ceilings. Various mounting systems are available which can be inspectable and not-inspectable depending on the type of fixing:
• wall: mounting profiles made of extruded aluminum (Tecalum) are used. The edges of the panels are mechanized for an invisible and adjustable fixing to the mounting profiles (system not inspectable).

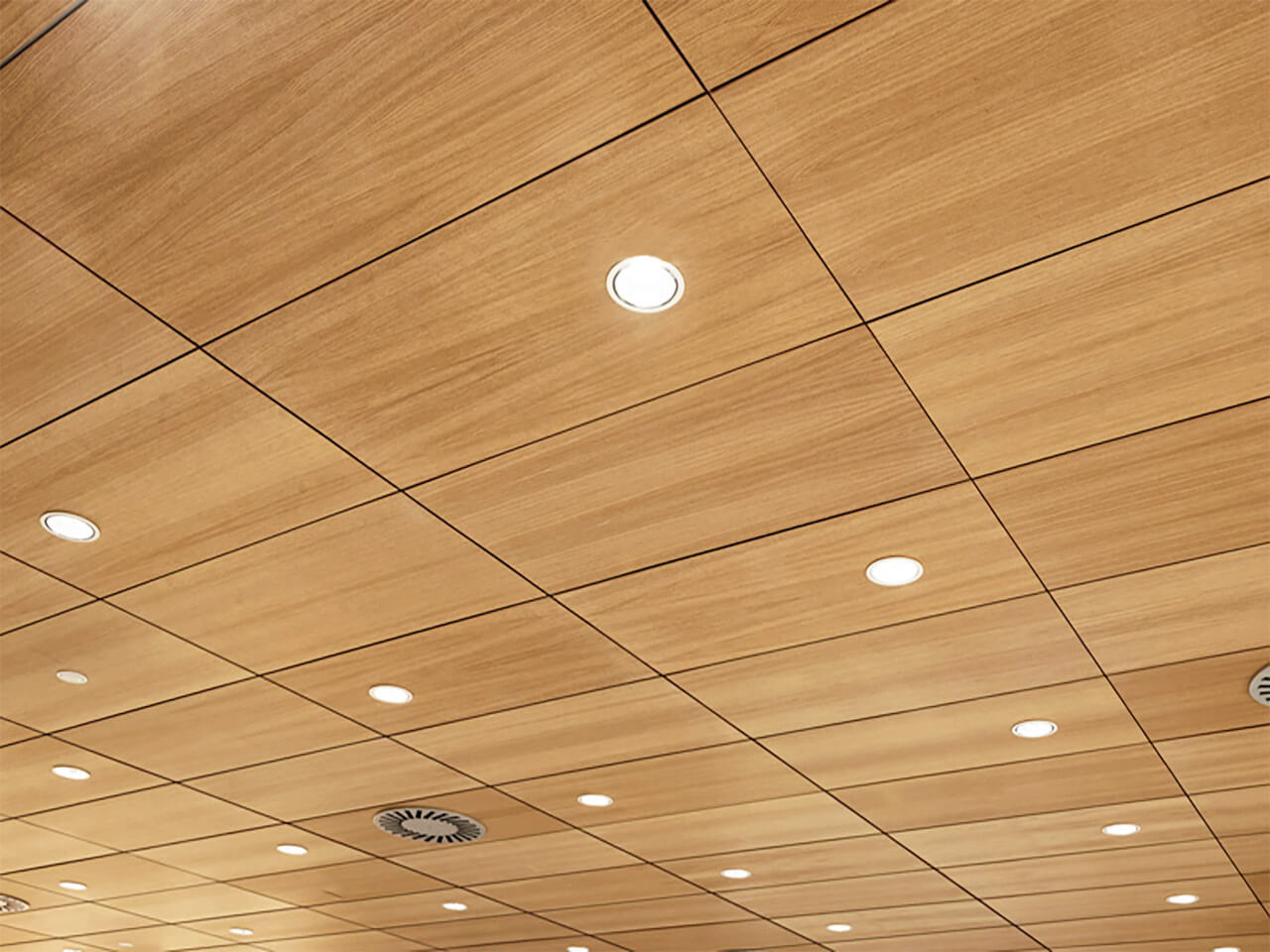

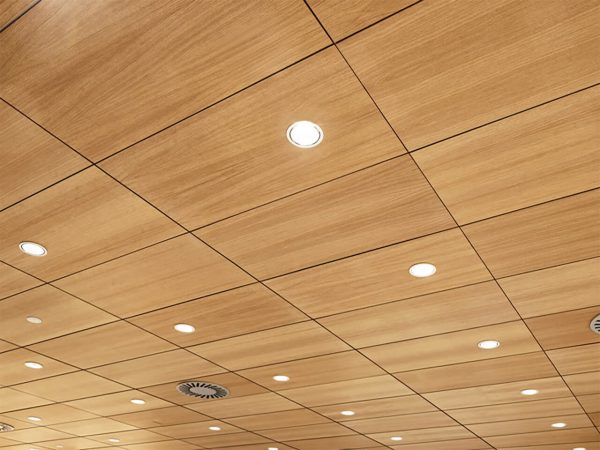

• Ceiling: we adapt MicroAcoustic panels to all existing fastening systems and profiles on the market. Modular mounting profiles type T24 made of steel are used. The edges of the panels are mechanized for inspectable, semi-invisible or invisible fastening.
For an optimal sound absorption coefficient in class “A” it is necessary to provide a space of at least 30/40 mm between the wall and the back of the panels and insert a mineral fiber or polyester mattress with a density of 30-40 kg / m3

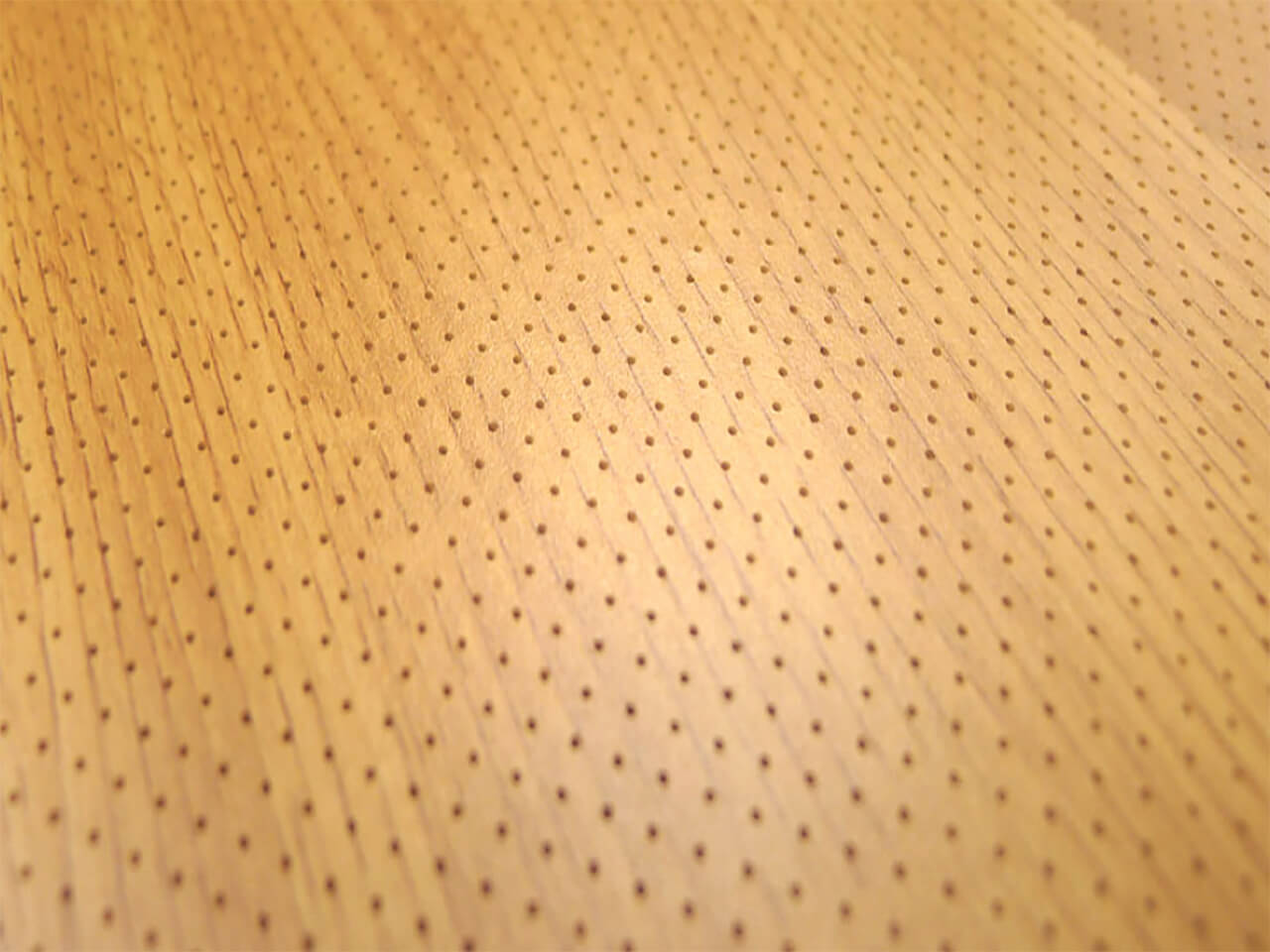

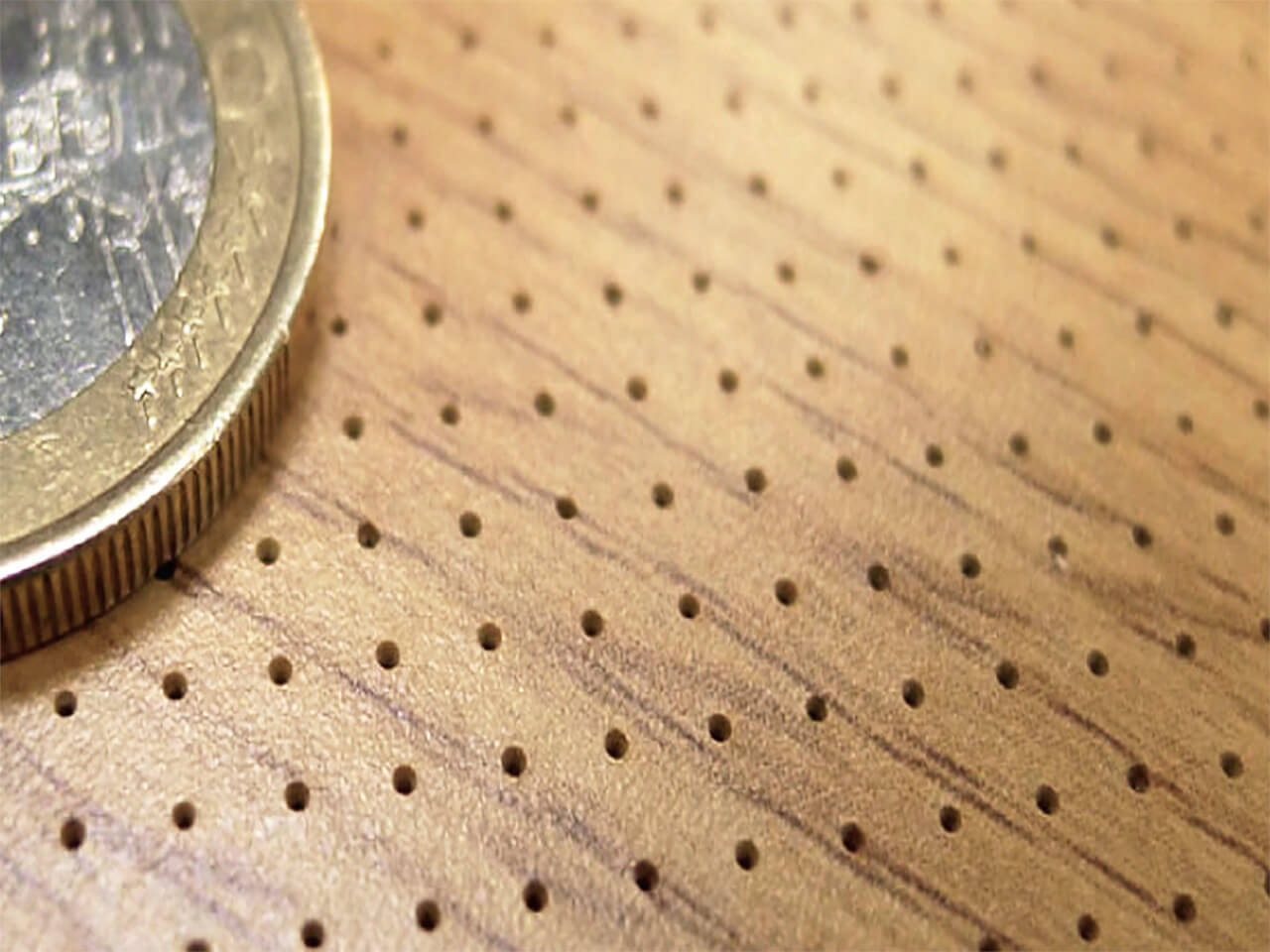

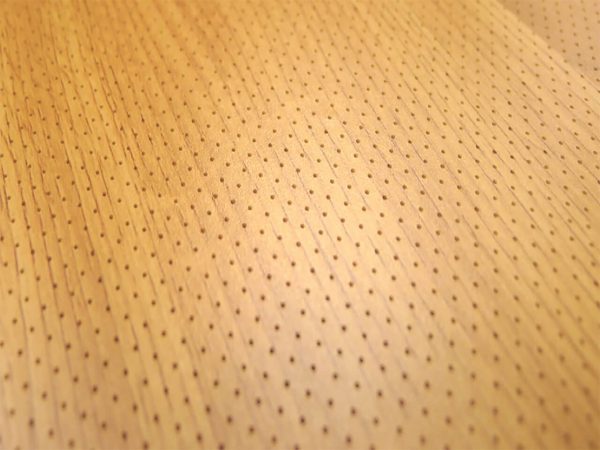

The 0.5 mm holes are practically invisible, these are micro perforations on the visible side of the panels and with large perforations on the back side, which help to increase the sound absorption coefficient. We reach a total of 137,000 holes per square meter, with a center distance of 2.7 mm. We can supply the same type of panel with or without microperforations according to the acoustic and aesthetic needs of each space.
We also offer other wooden acoustic panels:
Groovy Acoustic, slotted acoustic panels, for more information and photos click here.
Materials and finishes

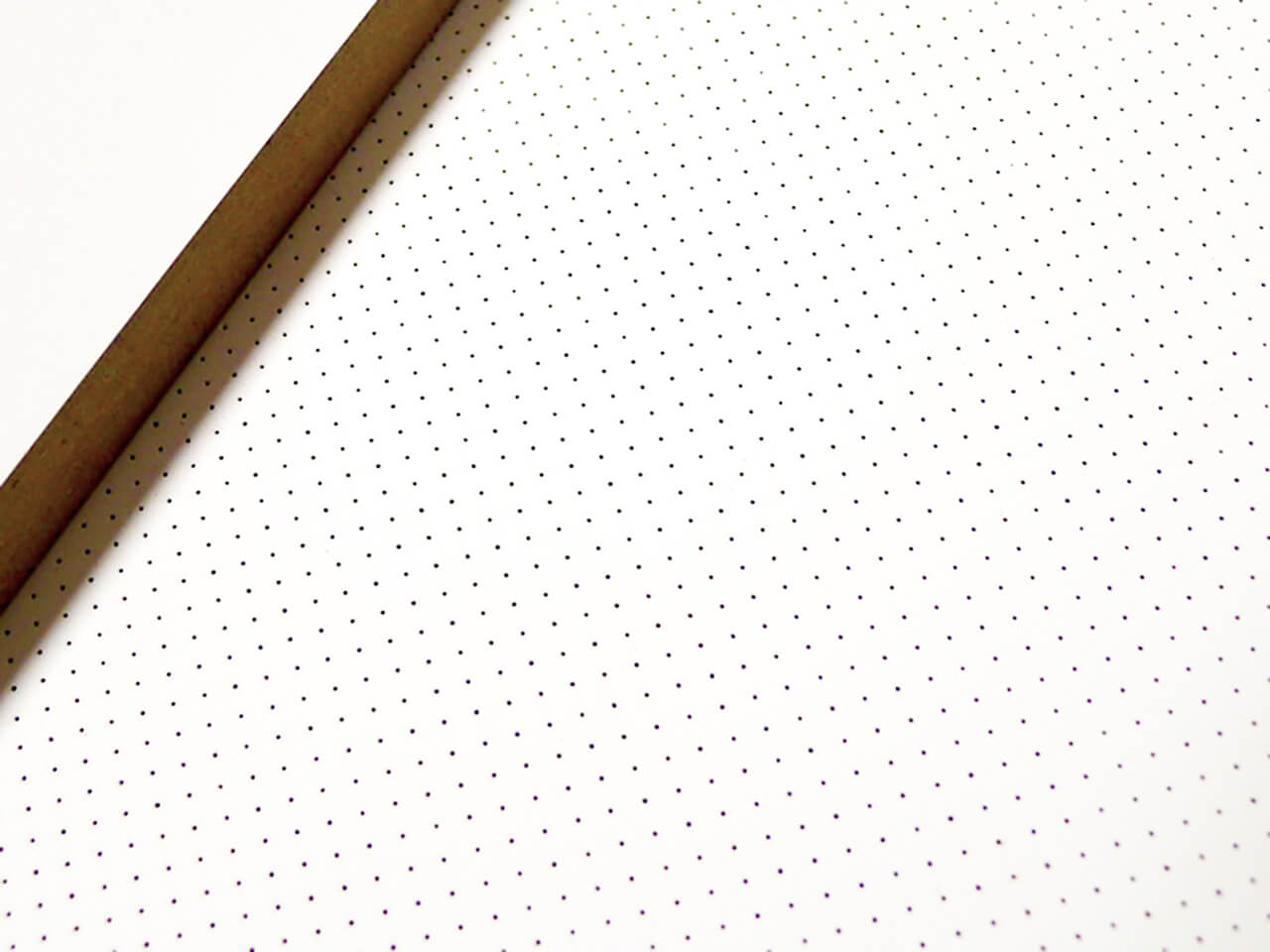

The micro-perforated panels are made of standard or fireproof MDF wood fiber. The surface finishes of the micro-perforated panels are available in a wide range of natural wood veneers, painted or lacquered in RAL or NCS, in melamine.
The panels can also be made of mass-colored MDF or plywood.
We have a series of accessories to improve the finishes of the installations (decorative panels, skirting boards, corners, profiles and finishing edges, etc.).
Micro-perforated panels of 2400 x 600, 1200 x 600, 600 x 600, thickness 16 mm.
Other dimensions are available on request.
